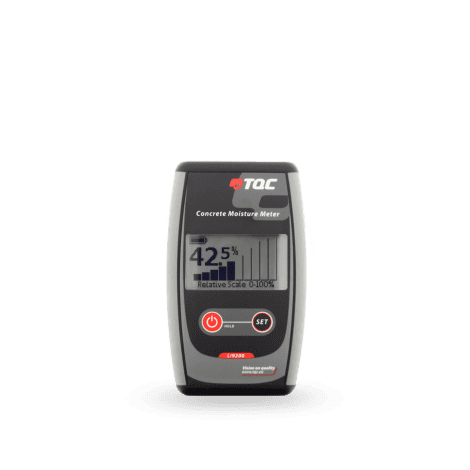

The TQC Concrete moisture meter is a non-destructive moisture meter for concrete. By means of measuring the electrical impedance the moisture content of concrete can easily be determined by just pressing the instrument against the concrete surface. The electrical impedance is measured through generating a low frequency electric field between 8 electrodes at the bottom of the instrument. Depending on the moisture content the measurements are made to a depth of several centimeters. This system is not suitable to measure through electrically conductive materials like metal or rubber linings or wet surfaces. TQC Concrete Moisture meters are ideal to quickly test large concrete floors or constructions which have to be painted or where (wooden) floorings are being installed. Four scales allow flexible use of the instrument as an accurate measuring device or just as a detector to find moisture traces or leakage. 1. Concrete 0-6% H2O 2. ~ Carbide Method 0-4% H2O 3. Relative Scale 0-100% 4. ~ 15. Scale 0.3-15.3m Convenient features such as a “max-hold” for hard to reach places and “auto-switch off” are integrated. Specifications Dimensions: 147x89x33mm Power supply: 2xAA battery Average working time on one battery set : 20 hours Display: monochrome 128×64 pixels, size 61x33mm with backlight Operating temperature range: 5°C to 40°C Accuracy: ±0.5% Scope of supply Concrete moisture meter, soft pouch, manual AVAILABLE TO ORDER
LI9200 | TQC Concrete moisture meter |
